Pudu Robotics · Industry-Grade Autonomous Quadruped Robot

D5 — Where Wheels Give Up

Name: Servbotics
Address: AU
Telephone: +61 8 8275 6048
Price range: $$$

The PUDU D5 Series is an industry-grade autonomous quadruped built for all-weather industrial work. It clears 25–30 cm steps, climbs 30° slopes, descends 45° ramps, and runs from −20 °C to 55 °C at IP67 — carrying inspection kits or delivery crates as required.

Request a Quote View Specifications

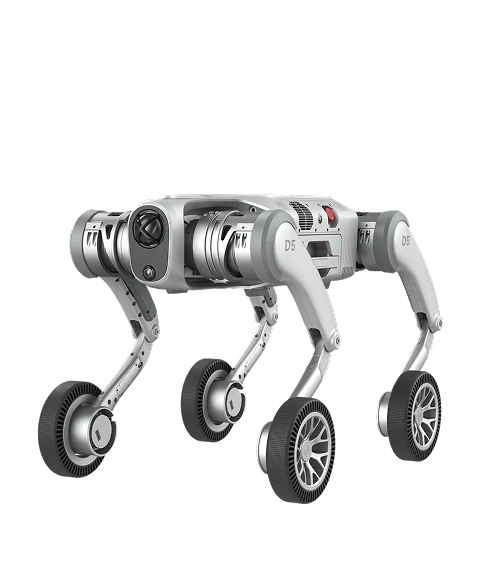

PUDU D5 industry-grade autonomous quadruped inspection robot

Why PUDU D5 Series

IP67 four-legged mobility across steps, slopes, and weather.

275 TOPS Computing Platform

An NVIDIA Jetson Orin AGX 64GB and RK3588 dual-processor architecture delivers up to 275 TOPS. A vapour-chamber system with dual-fan cooling keeps the platform stable under heavy, continuous workloads.

360° Precision Perception

Dual spherical LiDARs combined with four fisheye cameras create a full-coverage perception system, enabling centimetre-level positioning and accurate dynamic obstacle avoidance.

All-Terrain Mobility

Handles 25–30 cm steps, climbs of up to 80 cm, 30° ascents, and 45° descents, cruising at up to 5 m/s for fast, stable movement across both built and off-road environments.

All-Weather Durability

Cold-start below −10 °C, an operating range of −20 °C to 55 °C, and IP67 ingress protection deliver dependable performance in rain, snow, dust, and swinging temperatures.

Voice & Gesture Interaction

Voice and gesture control covers 10+ natural gestures using deep-vision sensing and a 6-microphone array. AI noise reduction and sound localisation keep responses accurate even in noisy industrial settings.

Intelligent Follow

Dynamic obstacle avoidance and trajectory prediction let the D5 follow an operator precisely through crowded spaces, adjusting its path in real time for smooth, safe movement.

Remote Vision & Control

The RCOS remote control system monitors real-time operating status and issues commands instantly, with live panoramic camera feeds giving full visibility of the on-site environment.

Modular Expansion

An open architecture supports add-ons including metal delivery crates, inspection gimbals, and a charging station — suiting security, inspection, logistics, and research deployments.

Two Variants

The D5 and the wheeled D5-W share computing, perception, and protection. The D5 clears a 30 cm step with 25° ascent; the D5-W trades a little step height for 30° ascent and up to 3 hours of operation.

PUDU D5 Series Specifications

Engineered specs straight from Pudu Robotics.

Standing Dimensions	900 × 543 × 572 mm (35.4 × 21.4 × 22.5 in)
Weight (with battery)	D5 61 kg (134.5 lbs) · D5-W 62 kg (136.7 lbs)
Computing Platform	NVIDIA Jetson Orin AGX 64GB + RK3588 (up to 275 TOPS)
Perception Sensors	Dual 3D LiDAR + four fisheye cameras
Maximum Joint Torque	165 Nm (121.7 lb·ft)
Battery Capacity	1,000 Wh
Operating Time	D5 2–2.5 h · D5-W 2–3 h
Continuous Walking Payload	20–30 kg (44–66 lbs)
Climbing Capability	Up to 80 cm (31.5 in)
Maximum Step Height	D5 30 cm (11.8 in) · D5-W 25 cm (9.84 in)
Slope Capability	D5 25° ascent · D5-W 30° ascent · both 45° descent
Operating Temperature	−20 °C to 55 °C (−4 °F to 131 °F)
Cold-Start Capability	Below −10 °C (below 14 °F)
Ingress Protection	IP67
LiDAR Configuration	Dual 96-line standard · dual 192-line upgrade available on request
Capabilities	Autonomous navigation, autonomous following, voice interaction

Where PUDU D5 Series Works

Proven across these industries — talk to us about yours.

Industrial Inspection

Plant and substation rounds across stairs, gantries, and uneven ground that wheeled robots cannot traverse, with an optional inspection gimbal kit.

Security & Patrol

All-weather perimeter and site patrol at IP67, running from −20 °C to 55 °C with live panoramic video back to the control room.

Logistics in Rough Terrain

Carrying 20–30 kg over steps, slopes, and broken surfaces using the metal delivery crate attachment.

Research & Education

An open architecture and 275 TOPS of onboard compute make the D5 a platform for robotics research and advanced teaching.

About Pudu Robotics

Pudu Robotics is a global leader in service robotics, founded in 2016 and shipping more than 80,000 commercial robots to 60+ countries. Their robots power restaurants, hotels, hospitals, factories, and retail venues worldwide.

Why Pudu

With one of the largest service-robot fleets in operation, Pudu Robotics combines proprietary SLAM navigation, multi-sensor obstacle avoidance, and purpose-built industrial design to deliver robots that just work — day after day, in real commercial environments. Each model is engineered for a specific job, from front-of-house customer engagement to back-of-house heavy lifting and autonomous floor cleaning.

Official Australian Distributor

Servbotics is the official Australian distribution partner for Pudu Robotics. We provide local sales, deployment, training, warranty support, and parts — so your robot stays productive on Australian time, in Australian conditions.

✓Australia-wide delivery and on-site commissioning
✓Local English-speaking support team
✓Manufacturer warranty + Servbotics service plans
✓Genuine Pudu parts and consumables held in-country

FAQs

Common questions about the PUDU D5 Series from Australian operators.

What terrain can the D5 handle?

Steps up to 25–30 cm depending on variant, climbs up to 80 cm, ascents of 25–30°, and 45° descents, at speeds up to 5 m/s across urban and off-road environments.

Can it work outdoors in bad weather?

Yes. It carries IP67 ingress protection, operates from −20 °C to 55 °C, and cold-starts below −10 °C, so rain, snow, and dust are within its design envelope.

What is the difference between the D5 and D5-W?

The D5-W is the wheeled variant. It manages a 25 cm step versus the D5's 30 cm, but climbs 30° ascents versus 25° and runs up to 3 hours versus 2.5.

What can it carry?

A continuous walking payload of 20–30 kg, with modular attachments including a metal delivery crate and an inspection kit. Accessories are optional and sold separately.
